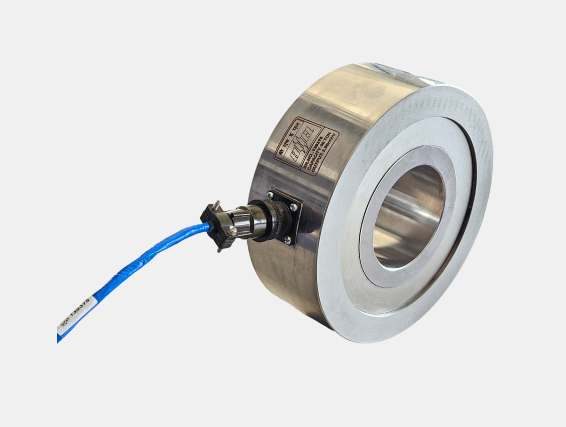

ADI APT-961 TH pancake load cell (also known as a Universal Load Cell or Shear Web Load Cell) is a high-precision force transducer distinguished by its flat, low-profile, and circular or disc shape, resembling a pancake. Its low-profile and round design allows it to be installed in environments with limited space or height constraints. It is highly versatile, designed for measuring forces in both tension (pulling) and compression (pushing). The structure typically features a central threaded hole for applying the load and multiple mounting holes on the outer ring for securing it to a surface. The internal element often consists of multiple shear webs or spokes arranged symmetrically. A key advantage is its high resistance to off-axis loading (side forces or bending moments), making it exceptionally accurate and reliable even when the load is not perfectly centered. It is also known as model 90610
Product Type
Single Point Aluminium Load Cell
Usage
Table top scales, Counting and postal scales, Check weighers.
Material
Aluminium
Output
Analog Sensor
Theory
Resistance Sensor
Compensated Temperature
10 To 60 Celsius (oC)
Rated capacity (NM)
5, 10
Excitation Voltage
10 V DC – Maximum 15 V DC
Full Scale Output
2.0 mV / V
Non – Linearity
<± 0. 1 % FSO (Full scale Output)
Hysteresis
<± 0.1% FSO
Non-Repeatability
<± 0.1 % FS0
Creep error (30 minutes)
<± 0.3% FSO
Zero Output
± 1.0 % FSO
Input Resistance
392 ± 10 Ohms
Output Resistance
392 ± 10 Ohms
Insulation Resistance
>1000 Mega Ohms
Safe Overload
150 % of Rated Capacity
Ultimate Overload
250 % of Rated Capacity
Temperature
Compensated Range
10 to 60°C
Temperature Effect at Full Load
<0.05 % FSO/° C
Temperature Effect on
Zero
<0.05 % FSO/° C
Environment Protection
IP 65
Finish & Construction
Stain Less Steel 17-4 PH
Rotational Angular Deflection
< 0.2 at FSO
