A rail weighing system, often referred to as a rail weighbridge or train scale, is a specialized, high-capacity system used to measure the weight of rail cars, locomotives, or entire trains, either statically (when stationary) or in-motion (WIM) as they pass over the track. This is essential in industries like mining, logistics, and bulk transport for inventory control, billing purposes (custody transfer), and critically, for safety compliance by preventing railcar overloading or uneven load distribution which can cause track damage or derailments. These systems are highly robust and designed to withstand the harsh environmental conditions and immense impact forces inherent to railway operations. The weighing instruments determine the individual wheel, axle, or bogie weights which are then summed to get the total weight of the railcar.

The primary instruments used are:

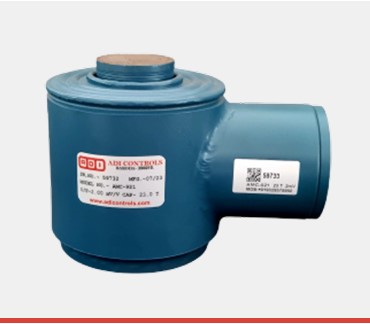

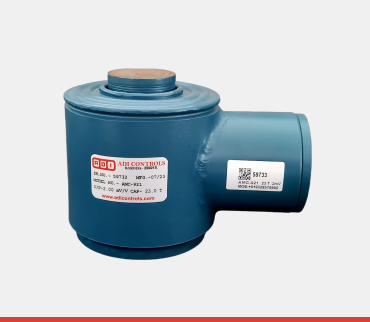

• > Load Cells: Due to the extremely heavy loads and required durability, the most common type used is the Compression Load Cell (or Canister Load Cell), which is designed for high capacity and excellent long-term stability under compressive forces. In many Weigh-In-Motion systems, specialized shear beam or bending beam load cells—often integrated directly into a short, removable rail section—are employed for their precision and dynamic response, sometimes relying on piezoelectric sensors for high-speed dynamic measurement. These load cells are housed in protective, rugged assemblies that minimize the effects of lateral movement and shock.
• > Weighing Instrument: The main electronic device is a Weighing Indicator or Integrator/Process Controller, which is a high-speed digital instrument. For static weighing, it processes the load cell signals to provide a stable, accurate weight reading. For In-Motion Weighing, the controller is much more complex, using high-speed A/D conversion and advanced algorithms to sample the dynamic force and often includes speed sensors to correlate weight with position, automatically detect wagon types, eliminate locomotive weight, and perform essential zero-tracking to maintain accuracy despite temperature or debris on the track.
