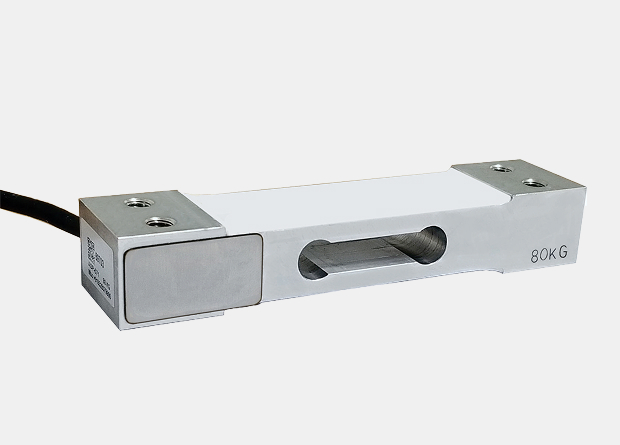

ADI CONTROLS Model ASP-671 is a strain gauge–based, low-profile bending beam load cell designed for bench, counting, floor, postal, and retail scale applications. Engineered for low eccentric load sensitivity, it is suitable for platform sizes up to 300 x 300 mm. Constructed from anodized aluminium alloy, the ASP-671 offers excellent durability, lightweight design, and high accuracy. This compact and reliable load cell is an ideal choice for tabletop and small platform scales and is also referred to as Model 60710.
Product Type
Single Point Aluminium Off Center Load Cell
Usage
Table Top Scales, Counting and Postal Scales, Check Weighers, Bag Weighing
Material
Aluminium
Output
Analog Output mV/V
Theory
Strain Gauge Principle
Compensated Temperature
0°C to 60°C
Rated capacity (Kgf)
3, 6, 10, 15, 20, 30, 40, 60, 80
Excitation Voltage
10VDC-Maximum 15 VDC
Rated Output
2.0 mV/V
Non – Linearity
< ± 0.025 % FSO (Full scale Output)
Hysteresis
< ± 0.02 % FSO
Non-Repeatability
< ± 0.01 % FSO
Creep error (30 minutes)
< ± 0.03 % FSO
Zero Load Output
± 1.0 % FSO
Input Resistance
400 ± 20 Ohms
Output Resistance
350 ± 10 Ohms
Insulation Resistance
>1000 Mega Ohms
Safe Overload
150 % of Rated Capacity
Ultimate Overload
250 % of Rated Capacity
Temperature
Compensated Range
0 to 60° C
Temperature Effect on
Output
<0.0015 % FSO/° C
Temperature Effect on
Zero
< 0.002 % FSO/° C
Max. Platform Size
300 x 300 mm
Deflection
< 0.4 mm at FSO
Finish & Construction
Aluminium Alloy
Environment Protection
IP 65
Tightening Torque
1.5 kg-m
A single point load cell (also known as a platform load cell or parallel beam load cell) is a type of force sensor designed to provide an accurate reading regardless of the position of the load on its weighing platform. It achieves this by having a minimal sensitivity to off-center loading.
The primary advantage is its independence from eccentric loading (off-center loading). Since its design inherently compensates for varying load positions, you only need one single point load cell to measure the weight accurately on a given platform, simplifying the mechanical design and calibration of the weighing system.
| Feature | Aluminium | Stainless Steel |
| Cost | Lower | Higher |
| Environment | Dry, clean applications | Harsh, wet, or corrosive environments |
| Sealing | Typically IP65 | Usually IP67 or IP68 (better moisture protection) |
| Typical Use | Bench scales, check weighers | Food processing, washdown areas |
Proper installation is critical for accuracy:
