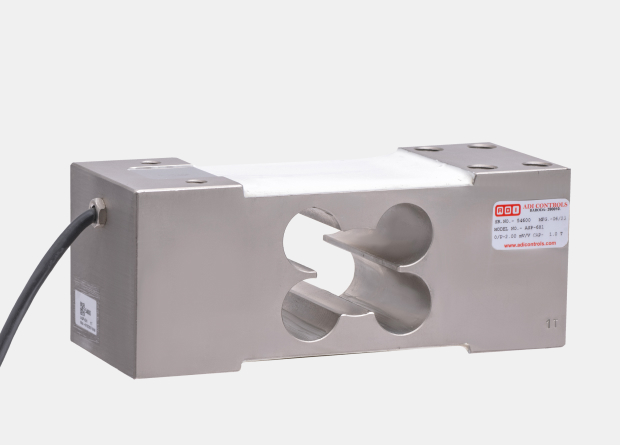

ADI CONTROLS Model ASP-681 is a strain gauge–based, low-profile bending beam load cell designed for precision large platform scale applications. Built from high-strength tool steel, it offers exceptional durability and can withstand heavy shock loads. Engineered for low eccentric load sensitivity, the ASP-681 supports platform sizes up to 1 x 1 meter while maintaining high accuracy and stable performance. Rugged and reliable, it is the ideal solution for large platform weighing systems, also known as Model 60810.
Product Type
Single Point Off Center Load Cell
Usage
Large Size Platform Scales, Check weighers, Bench Scale, Floor Scale, Bag Weighing, Hopper Weighing
Material
Tool Steel
Output
Analog Output mV/V
Theory
Strain Gauge Principle
Compensated Temperature
0°C to 60°C
Rated capacity (Kgf)
500, 750, 1000, 1500, 2000, 3000
Excitation Voltage
10VDC-Maximum 15 VDC
Rated Output
2.0 mV/V
Non – Linearity
< ± 0.025 % FSO (Full scale Output)
Hysteresis
< ± 0.02 % FSO
Non-Repeatability
< ± 0.01 % FSO
Creep error (30 minutes)
< ± 0.03 % FSO
Zero Load Output
± 1.0 % FSO
Input Resistance
388 ± 10 Ohms
Output Resistance
350 ± 4 Ohms
Insulation Resistance
>1000 Mega Ohms
Safe Overload
150 % of Rated Capacity
Ultimate Overload
250 % of Rated Capacity
Temperature
Compensated Range
0 to 60° C
Temperature Effect on
Output
<0.0015 % FSO/° C
Temperature Effect on
Zero
< 0.002 % FSO/° C
Max. Platform Size
1000 x 1000 mm
Deflection
< 0.5 mm at FSO
Finish & Construction
Electroless Nickel Plated Tool Steel
Environment Protection
IP 67
Off Center Load Error
< 0.02% of FSO at 1/3 rated
load/500mm off center
A single point load cell (also known as a platform load cell or parallel beam load cell) is a type of force sensor designed to provide an accurate reading regardless of the position of the load on its weighing platform. It achieves this by having a minimal sensitivity to off-center loading.
The primary advantage is its independence from eccentric loading (off-center loading). Since its design inherently compensates for varying load positions, you only need one single point load cell to measure the weight accurately on a given platform, simplifying the mechanical design and calibration of the weighing system.
| Feature | Aluminium | Stainless Steel |
| Cost | Lower | Higher |
| Environment | Dry, clean applications | Harsh, wet, or corrosive environments |
| Sealing | Typically IP65 | Usually IP67 or IP68 (better moisture protection) |
| Typical Use | Bench scales, check weighers | Food processing, washdown areas |
