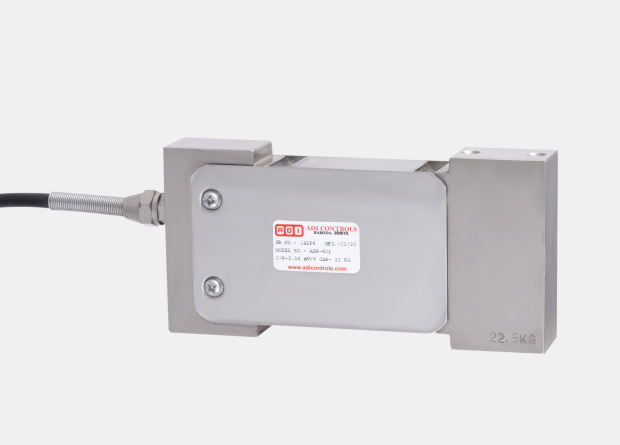

ADI CONTROLS Model ASP-621 is a low-profile, single-point load cell designed for platform weighing applications. Constructed from high-strength tool steel, it is ideal for harsh industrial environments. The cell features an electroless nickel-plated finish for enhanced corrosion resistance and utilizes strain gauge technology with full temperature compensation from 0°C to 60°C, ensuring stable and precise performance. Higher capacity versions are available upon request. The ASP-621 delivers high accuracy and reliability, making it a durable, low-profile solution for platform weighing — also known as Model 60210.
Product Type
Single Point Off Center Load Cell
Usage
Table top scales, Counting and postal scales, Check weighers, Bench Scale, Floor Scale
Material
Tool Steel
Output
Analog Output mV/V
Theory
Strain Gauge Principle
Compensated Temperature
0°C to 60°C
Rated capacity (Kgf)
11, 15, 22.5, 45, 90
Excitation Voltage
10VDC-Maximum 15 VDC
Rated Output
2.0 mV/V
Non – Linearity
< ± 0.025 % FSO (Full scale Output)
Hysteresis
< ± 0.01 % FSO
Non-Repeatability
< ± 0.02 % FSO
Creep error (30 minutes)
< ± 0.03 % FSO
Zero Load Output
± 2.0 % FSO
Input Resistance
390 ±15 Ohms
Output Resistance
350 ±5 Ohms
Insulation Resistance
>1000 Mega Ohms
Safe Overload
150 % of Rated Capacity
Ultimate Overload
250 % of Rated Capacity
Temperature
Compensated Range
0 to 60° C
Temperature Effect on
Output
<0.0015 % FSO/° C
Temperature Effect on
Zero
< 0.002 % FSO/° C
Max. Platform Size
500 x 500 mm
Off Center Load Error
< 0.02% of FSO at 1/3 rated
load/300mm off center
Deflection
< 0.5 mm at FSO
Finish & Construction
Electroless Nickel plated Tool Steel.
Stainless Steel available optionally
Environment Protection
IP 67
A single point load cell (also known as a platform load cell or parallel beam load cell) is a type of force sensor designed to provide an accurate reading regardless of the position of the load on its weighing platform. It achieves this by having a minimal sensitivity to off-center loading.
The primary advantage is its independence from eccentric loading (off-center loading). Since its design inherently compensates for varying load positions, you only need one single point load cell to measure the weight accurately on a given platform, simplifying the mechanical design and calibration of the weighing system.
| Feature | Aluminium | Stainless Steel |
| Cost | Lower | Higher |
| Environment | Dry, clean applications | Harsh, wet, or corrosive environments |
| Sealing | Typically IP65 | Usually IP67 or IP68 (better moisture protection) |
| Typical Use | Bench scales, check weighers | Food processing, washdown areas |
Proper installation is critical for accuracy:
