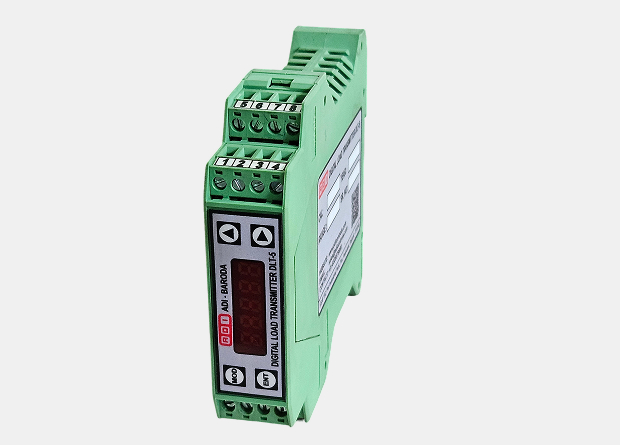

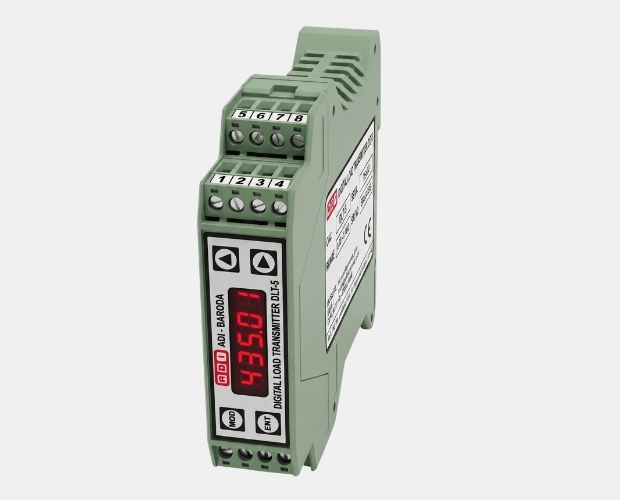

DLT-5

A Load Indicator (or Digital Weight Indicator) is the primary user interface and digital core of the weighing system. Its main roles are:

• > Power Supply: It provides the stable excitation voltage (power) to the load cell.
• > Signal Conversion: It receives the raw, micro-voltage (mV) signal from the load cell, amplifies it, and converts it into a digital value.
• > Display: It displays the final calculated weight in a readable format (kg, T, N) to the operator.
• > Calibration: It stores the system’s calibration parameters (zero, span, decimal points, capacity).
• > Communication: It communicates with devices such as HMI, PLC, PC, other devices via modbus RTU RS-485.

A Load Controller (or Process Controller) is essentially an indicator with additional control functionality used in automation:

• > Indicator: It performs all the basic functions of a standard indicator (display, power, signal conversion).
• > Control Logic: It contains built-in software or programming for specific applications like batching, filling, mixing, or checkweighing.
• > Outputs: It features discrete I/O (Input/Output) relays or ports that can be used to control external devices (e.g., stopping a conveyor, opening a valve, or triggering an alarm) based on weight set points.

A Load Cell Amplifier (or Transmitter) is a specialized device used to prepare the load cell signal for communication with industrial controllers like PLCs (Programmable Logic Controllers).⁶

• > Function: It takes the tiny mV signal and converts it into a standard, robust industrial signal, most commonly 4-20mA or 0-10VDC.
• > Necessity: Standard industrial controllers (PLCs) cannot directly read the load cell’s raw mVoutput. The amplifier makes the signal less susceptible to electrical noise and voltage drop over long distances, ensuring the PLC receives an accurate, proportional weight reading.

The 4-20mA current loop is the most robust standard for transmitting analog signals in harsh industrial environments for two key reasons:

• > Noise Immunity: Current signals are far less susceptible to electromagnetic interference (noise) over long cable runs than voltage signals.
• > Live Zero: The 4mA value represents the zero output (unloaded state). If the signal drops to 0mA (or close to it), the system immediately detects a broken wire or power failure, providing a built-in error detection mechanism.

When a system uses multiple load cells (e.g., a four-load cell tank system), they are connected using a Junction Box (J-Box).

1. Wiring: The cables from all individual load cells run into the J-Box.
2. Trimming: The J-Box contains terminal blocks and typically trimming resistors to electronically adjust the output of each load cell (called corner trimming or balance adjustment).
3. Summation: The signals are electrically summed together within the J-Box.
4. Single Output: A single main cable then runs from the J-Box to the Indicator or Controller, providing one combined weight signal.
