In industrial automation and process weighing, accuracy, reliability, and rugged performance are essential. From tank weighing and platform scales to batching systems, every measurement must be consistent and precise.
At ADI CONTROLS, we understand that the foundation of this precision lies in a single component: the load cell.
Our ASB-331 Single-Ended Shear Beam Load Cell embodies the engineering excellence required for demanding industrial environments, delivering stable, repeatable, and accurate performance even under challenging conditions.
A shear beam load cell measures force by detecting shear strain within its metal body. When a load is applied, the beam experiences a controlled deformation.
Strain gauges, precisely bonded on the beam at specific locations, sense this strain and convert it into an electrical signal proportional to the applied load.
Because the measurement is based on pure shear, rather than bending, this design provides excellent linearity, low hysteresis, and high immunity to side loads, ensuring consistent performance across applications

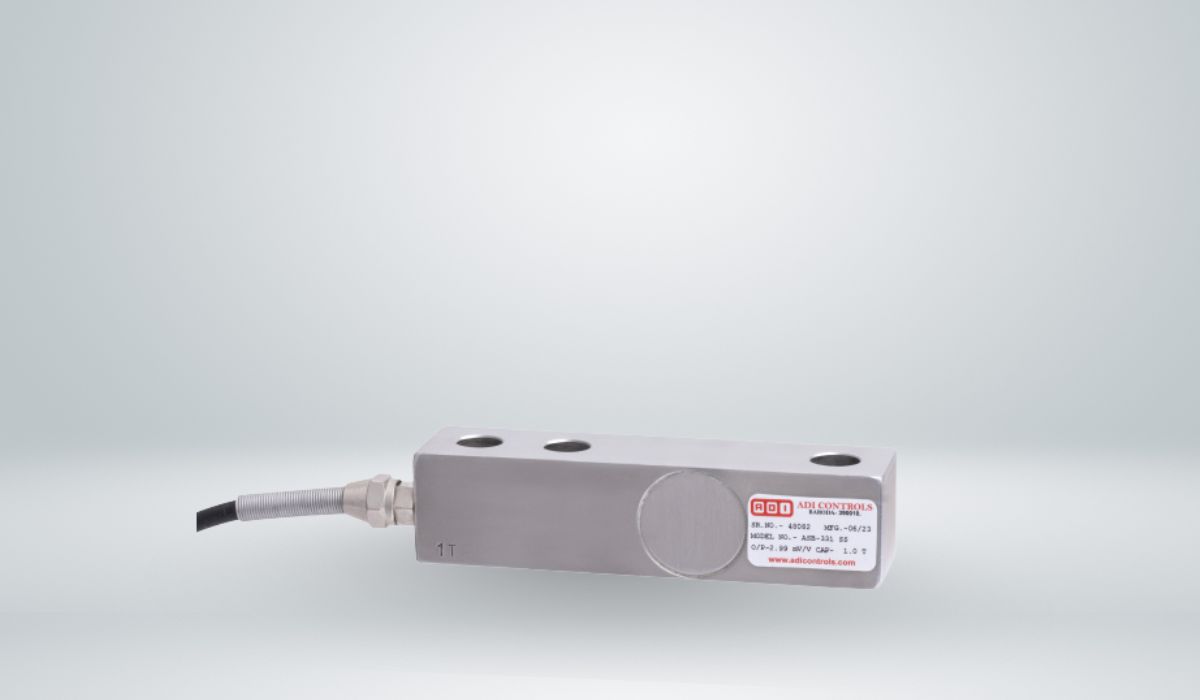

The ASB-331 Single-Ended Shear Beam Load Cell is designed with one end rigidly mounted and the load applied at the free end through a loading assembly.
This configuration ensures mechanical stability, compact installation, and long-term reliability, even under off-center loading or vibration.
Technical Highlights
| Parameter | Specification |
|---|---|
|
Model |
ASB-331
|
|
Type |
Single-Ended Shear Beam
|
|
Rated Capacities
|
50 kg to 10,000 kg
|
|
Output Sensitivity
|
3.0 ± 0.0020 mV/V
|
|
Non-Linearity
|
< ±0.02% of Rated Output
|
|
Hysteresis
|
< ±0.02% of Rated Output
|
|
Creep (30 min)
|
< ±0.03% of Rated Output
|
|
Temperature Compensation Range
|
−10°C to +65°C
|
|
Protection Class
|
IP68, IP67
|
|
Material
|
Nickel-Plated Alloy Steel
|
|
Cable Length
|
3 meters (custom options available)
|
With years of expertise in industrial measurement and automation, ADI CONTROLS designs load cells that combine technical precision with practical reliability.
Each product is manufactured under stringent quality control and tested for performance, durability, and consistency.
The ASB-331 is engineered not just to measure force, but to deliver confidence in every reading.
In modern industrial systems, the difference between acceptable and exceptional performance often comes down to the quality of measurement.
The ADI CONTROLS ASB-331 Single-Ended Shear Beam Load Cell is built to meet that demand, offering unmatched accuracy, durability, and dependability in every application. This load cell is also known as 30310
When precision matters, choose ADI CONTROLS, where engineering meets excellence.
